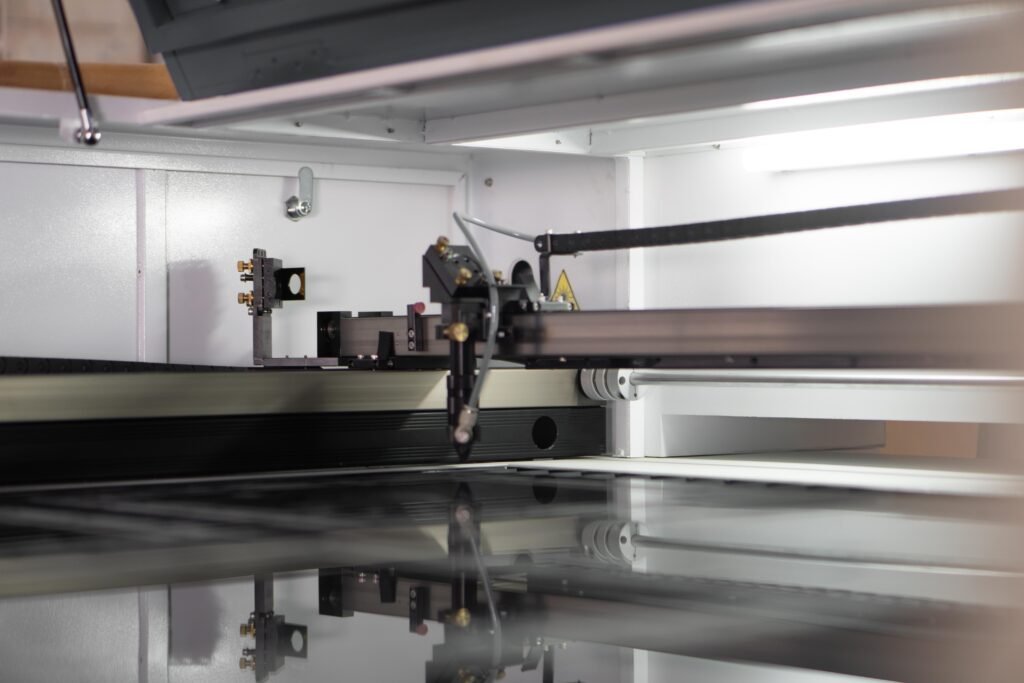

Laser cutting is a precision manufacturing process that can transform various materials into intricate designs. However, one of the most common challenges faced by both beginners and experienced operators is preventing burn marks. This comprehensive guide will walk you through proven techniques, material-specific settings, and professional tips to achieve clean, burn-free cuts across different materials.
What causes Laser cut burns ?
Common Causes of Laser Cut Burn Marks
- Incorrect power-to-speed ratio
- Inadequate air assist
- Poor focus adjustment
- Material inconsistencies
- Improper maintenance of laser equipment
Material-Specific Techniques and Settings
Clear Acrylic Laser Cutting Guide
Material Preparation
- Always use cast acrylic for superior edge quality for Laser Cut Acrylic
- Clean surfaces thoroughly with isopropyl alcohol
- Remove protective film only from cutting areas
- Ensure material is properly secured and level
Optimal Settings for Clear Acrylic
- Power: 50-60W
- Speed: 12-15mm/s
- Frequency: 2500Hz
- Air Assist: 25 PSI
- Focus Offset: 1.5mm from material surface
Multi-Pass Technique for Thick Acrylic (>6mm)
- First pass: 40% power
- Second pass: 60% power
- Implement cooling periods between passes
- Monitor edge quality during cutting
Wood Laser Cutting Techniques
Basic Settings for Wood
- Power: 65W
- Speed: 20mm/s
- Air Assist: 35 PSI
- Focus Distance: 2mm offset
Grain-Matched Cutting Strategies
- Reduce power by 10% for darker grain areas
- Increase speed by 15% for smoother cuts
- Implement multiple light passes for detailed work
- Consider grain orientation when designing
Metal Cutting Parameters (Fiber Laser)
Standard Settings
- Power: 1000W minimum
- Speed: 25mm/s
- Air Assist: 40 PSI (nitrogen recommended)
- Focus Distance: 1mm offset
Material-Specific Adjustments
- Stainless Steel: 1000W, 20mm/s
- Aluminum: 800W, 25mm/s
- Mild Steel: 1200W, 15mm/s
Machine Optimization and Maintenance
Air Assist System Optimization
- Regular pressure testing
- Nozzle cleaning schedule
- Proper positioning relative to cutting head
- Maintenance of air delivery system
Focus System Maintenance
- Regular calibration checks
- Lens cleaning procedures
- Focus height verification
- Adjustment for different materials
Advanced Laser Cutting Techniques for Professional Results
Vector File Optimization
- Set line thickness to 0.1mm
- Eliminate overlapping paths
- Use RGB color coding for different operations
- Implement proper node placement
Multi-Material Projects
- Layer combination techniques
- Wood and Laser Cut acrylic combinations
- Acrylic and metal integration
- Precise alignment methods
- Design Considerations
- Account for material-specific tolerances
- Plan for thermal expansion
- Consider structural stability
Professional Display Manufacturing
- Structural Considerations
- Base support calculations
- Joint strength assessment
- Weight distribution planning
- Edge Finishing Techniques
- Cutting -Polishing – Edge Bevelling
Avoid Common Issues for Laser cut
Common Problems and Solutions
- Uneven Laser Cut Acrylic
- Check material flatness
- Verify focus consistency
- Ensure proper air assist function
- Edge Discoloration
- Adjust speed/power ratio
- Clean air assist nozzle
- Verify material quality
- Incomplete Cuts
- Check focus height
- Verify power settings
- Consider multiple passes
Best Practices and Workflow Tips
Quality Control Measures
- Regular test cuts
- Material quality verification
- Parameter documentation
- Equipment maintenance logs
Production Efficiency
- Batch similar materials
- Optimize cutting paths
- Implement proper material handling
- Maintain organized workspace
Choosing the Right Laser Cutting Method
Laser Cut Vs Die Cut
Die Cutting Defined
Die cutting is a traditional manufacturing process that uses custom-made tools (dies) to cut, shape, and form materials through mechanical force. The process involves:
- Physical contact between die and material
- Mechanical pressure application
- Specialized tooling for each unique design
- Rotary or flatbed configurations
Comparative Analysis
Cost Considerations
Initial Investment
- Die Cutting
- Lower machine costs
- Higher tooling costs per design
- Significant setup expenses
- Laser Cutting
- Higher machine costs
- No tooling costs
- Minimal setup expenses
Operating Costs
- Die Cutting
- Lower energy consumption
- Regular die maintenance/replacement
- Higher labor requirements
- Laser Cutting
- Higher energy consumption
- Regular lens and mirror maintenance
- Lower labor requirements
Performance Metrics
Speed and Efficiency
- Die Cutting
- Faster for large runs (up to 20,000 pieces/hour)
- Quick repeated patterns
- Minimal material-specific adjustments
- Laser Cutting
- Variable speed based on material
- Design-dependent processing time
- Quick changeover between designs
Precision and Accuracy
- Die Cutting
- Consistent results across runs
- Limited by die manufacturing precision
- Potential for wear-related quality issues
- Laser Cutting
- High precision (±0.1mm typical)
- Complex design capability
- Consistent quality over time
Material Compatibility
Die Cutting Strengths
- Soft Materials
- Paper and cardboard
- Foam and rubber
- Thin plastics
- Adhesive materials
- Challenging Materials
- Multi-layer composites
- Pressure-sensitive materials
- Flexible substrates
- Thick materials (single pass)
Laser Cutting Strengths
- Hard Materials
- Metals (with appropriate power)
- Acrylics and plastics
- Wood and composites
- Glass (specialized systems)
- Precision Materials
- Thin films
- Electronic components
- Medical devices
- Architectural models
Application-Specific Considerations
High-Volume Production
Best Choice: Die Cutting when:
- Consistent design requirements
- Large production runs (100,000+ pieces)
- Simple to moderate complexity
- Cost-sensitive projects
Prototype and Small Batch
Best Choice: Laser Cutting when:
- Frequent design changes
- Small to medium runs
- Complex designs
- Quick turnaround required
Custom Manufacturing
Best Choice: Depends on:
- Design complexity
- Material requirements
- Production volume
- Quality specifications
Industry-Specific Applications
Packaging Industry
- Die Cutting Advantages:
- High-speed box production
- Consistent fold lines
- Cost-effective for standard sizes
- Robust material handling
- Laser Cutting Advantages:
- Custom packaging solutions
- Intricate decorative elements
- Small-run specialty packaging
- Prototype development
Electronics Industry
- Die Cutting Advantages:
- High-volume gasket production
- Consistent insulator cutting
- Multi-layer assembly components
- Pressure-sensitive applications
- Laser Cutting Advantages:
- PCB cutting and marking
- Component trimming
- Precise circuit elements
- Clean, contamination-free cuts
Making the Right Choice
Key Decision Factors
- Production Volume
- Calculate annual production needs
- Consider growth projections
- Assess batch size variations
- Design Requirements
- Evaluate design complexity
- Consider change frequency
- Assess precision needs
- Material Considerations
- Review material types
- Consider thickness ranges
- Assess special requirements
- Business Model Alignment
- Analyze customer demands
- Consider market positioning
- Evaluate competitive advantages
ROI Calculations
Consider these factors:
- Initial Investment
- Equipment costs
- Installation expenses
- Training requirements
- Operating Costs
- Energy consumption
- Material waste
- Labor requirements
- Maintenance needs
- Production Efficiency
- Output capacity
- Setup time
- Changeover speed
Future Considerations
Technology Trends
- Die Cutting Evolution
- Digital die making
- Hybrid systems
- Automated tool changing
- Laser Cutting Advancement
- Higher power systems
- Improved beam quality
- Advanced control systems
Industry Developments
- Increasing automation
- Smart manufacturing integration
- Sustainable processing methods
- hybrid solutions
Need bulk laser-cut acrylic products? Contact Euphoria Model Makers today for high-quality, custom solutions
Achieving burn-free laser cutting requires a comprehensive understanding of materials, equipment, and techniques. By following these guidelines and maintaining proper attention to detail, you can consistently produce high-quality cuts across various materials. Remember to regularly test and document your parameters, maintain your equipment, and stay updated on new techniques and technologies in the field.
This guide serves as a foundation for both beginners and experienced operators. As you gain experience, you’ll develop an intuitive understanding of how different materials respond to various settings and how to adjust parameters for optimal results. Continue to experiment and refine your techniques while maintaining these core principles for consistent, professional-quality results
